3 In 1 Indoor Fixed LED Display Easy Operation Big View Angle 160×160mm

Product Categories

Shenzhen LED World Co.,Ltd

Contact Now

3 In 1 Indoor Fixed LED Display Easy Operation Big View Angle 160×160mm

Name: 3 In 1 Indoor Fixed LED Display Easy Operation Big View Angle 160160mm
Brand: Shenzhen LED World
Price: 1 USD

Quality 3 In 1 Indoor Fixed LED Display Easy Operation Big View Angle 160×160mm for sale

Brand Name : Shenzhen LED World

Model Number : LW-FI 10

Certification : RoHS,FCC,CCC,CE

Place of Origin : China

MOQ : 1 square meter

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 2000 square meter /Month

Delivery Time : 12~18 days after receiving the deposit

Packaging Details : Plywood cartons or wooden case

Module resolution : 16×16

Frame frequency : ≥60hz/s

Cabinet weight : 54kg

Driving Components : MBI5024GF

Input signal : RF, S-VIDEO, RGB, RGBHV, YUV, YC and COMPOSITION, etc

Pixel pitch : 10mm

Constitution : 1R1G1B

Size of module : 160×160mm

Contact Now

Indoor fixed led display_201905211023311.pdf

P10 3 in 1 indoor / outdoor fixed led display video wall with big view angle

Features:

High contrast,ideal gray scale,presenting the most real pictures;
Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon；
Various installations Magnetic assembling, quick assembling with support or common cabinet assembling of the display tiles;
Standard processing technology to ensure tubes in each row and each column are at the same level, ensuring stability and clarity of the picture;
Easy operation:
The products adopt popular video playing software to facilitate system operations;
Adopting SMD3528 3 in 1 technology that makes the LED display has ultra-wide viewing angle and better flatness;
Advanced All-In-One control system:with LED World's advanced control system,client can operate LED screen in a simple way,save your labor cost;

Parameter:

Specification of Indoor SMD 3-in-1 LED Display
	P10
Pixel pitch	10mm
Size of module	160×160mm
Density of pixel	10000dots/m2
Constitution	1R1G1B
Encapsulation	3528
Module resolution	16×16
Module power cosumption	15W
The optimum viewing distance	8m
Viewing angle(Horizontal)	120°
Maximum power cosumption	450W/m2
size of cabinet	1280×960 mm
Resolution of cabinet	128×96
Cabinet weight	54kg
Driving Components	MBI5024GF
Driving method	1/8
Frame frequency	≥60hz/s
Refresh rate	≥400hz/s
Luminance of white balance	≥1500 CD/m2
Working enviornment temperature	-10ºC--50ºC(-30ºC--50ºCoptional)
Working voltage	220±10% or 110±10%
Grey Scale/Color	Displaying colors≥16.7M(synchronized)
Brightness adjustment	256 levels of each color(R,G,B) can be adjusted manually, and 8 levels of each color can be adjusted automatically
Input signal	RF, S-VIDEO, RGB, RGBHV, YUV, YC and COMPOSITION, etc
Control system	PCTV non-linear editting card+DVI display card+main controller card+optic fibre transmission(Optional)
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Application:

It can be widely used in auditorium,live meeting,bars,theme parks,train station,cafe,school, Auto Parts and Maintenance shops,subway station,station weiting area,
communities and so on .

Our company:

Shenzhen LED World co.,ltd is professional development manufacturing LED display system products, was founded in 2007, with the registered capital 30 million, own workshop area 9000 m2, branch office and agents cover all over China, with about 400 employees.
Our technology strength is among the front row in this industries, with a professional team. Strictly quality control, good after sale service and quickly delivery.
The workshop covering an area of 9000 square meters, No. of production lines are above 10.

Product detail:

3 In 1 Indoor Fixed LED Display Easy Operation Big View Angle 160×160mm

Product Tags:

Advertising Led Display

Indoor Led Display Screen

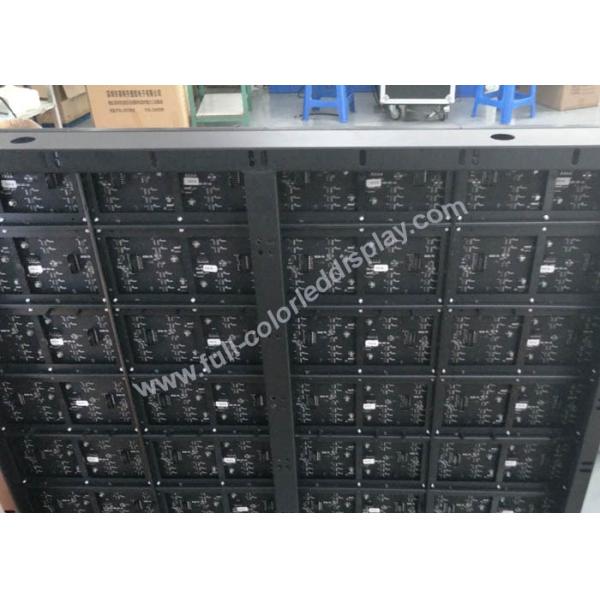

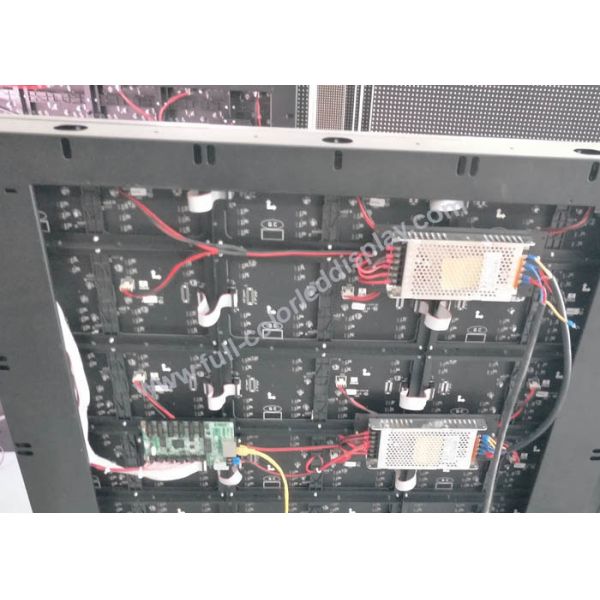

3 In 1 Indoor Fixed LED Display Easy Operation Big View Angle 160×160mm Images
