Energy Saving P5 Indoor Full Color LED Billboard With Synchronous 128*128dots

Product Categories

Shenzhen LED World Co.,Ltd

Contact Now

Name: Energy Saving P5 Indoor Full Color LED Billboard With Synchronous 128128dots
Brand: Shenzhen LED World
Price: 1 USD

Brand Name : Shenzhen LED World

Model Number : LW-RI 5

Certification : CE,RoHS,FCC,CCC

Place of Origin : China

MOQ : 1 Square Meter

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000 Sqm/Month

Delivery Time : 15~18 days after receiving the deposit

Packaging Details : Carton/Plywood case/Flight case etc.

Module size : 320mm*160mm

Module Thickness : 14.27mm (without magnet )

Refresh frequency : ≥1920HZ

Package mode : SMD3528

Operating Voltage : 110V-240V

Electric current : ≤20mA(single LED)

Cabinet resolution : 128*128dots

Interface : HUB75-A

Contact Now

energy saving P5 indoor full color LED billboard with Synchronous CE FCC RoHS

P5 indoor full color LED billboard features:

Can be assembled with cabinets or on rackes with magnet, for led TV Screen, video wall, sign board etc;
Easy to maintain from front;
Graceful and concise appearence, <0.1mm discrepancy aluminmum die-casting moulding criterion, no deformation;light weight, slim body;
The unique mechanical design enables modules to be installed or removed in seconds from the front or the back side;
human power and signal light, convenient viewing screen working condition and failure timely adjustments;
SpeedGo Interlocking panel system guarantees quick and easy installation;
Engineered for Performance;
Low Windage
Because the screen is ventilation, it reduce the windage and can save the structure costs;
Long durability and Hight Reliability；

P5 indoor full color LED billboard Parameter:

The specifications of modules
Items	Parameter
Product Model	LW-RI 5
Module size	320mm*160mm
Pixel pitch	5mm
Pixel density	40000dots/m2
Package mode	SMD3528
Pixel configuration	1R1G1B
Module resolution	64dots(W)*32dots(H)
Module maximum power consumption	25W
Module Thickness	14.27mm (without magnet )
Module Weight	0.21kg
Driving type	Constant Drive
Scanning method	1/16scan
Interface	HUB75-A
Brightness	≥1600cd/m2
The specifications of cabinets
Dimension	640mm*640mm
Thermal discharge	Fan 2pcs
Quantity of module	8
Power supply	5V/60A*1PCS
Cabinet resolution	128*128dots
Optimal viewing distance	5M~30M
Optimal viewing angle	160°(W) 120°(H)
RHWorking temperature	(Work :-30°C~+60°C)
System operating humility	10%-95%
The specifications of power supplier
Operating Voltage	110V-240V
Average power consumption	1180W/m2
Maximum power consumption	≤500W/m2
Electric current	≤20mA(single LED)
The specifications of control card
Control Panels	Pentium4 or above
Operating system	WIN98/2000/NT/XP
Control model	Synchronization with PC
The specifications of the main technical parameters
Driving device	Constant Current Driving
Refresh frequency	≥1920HZ
Grey scale	RGB Each 256, can display 16.7M colors)
MTBF	≥9000hours
Power switch	Automatic Switch
Display Mode	800600/1024768
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

Design the framework structure to install our led products with technical drawing;
Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection;
EXW. FOB. CIF accepted;
Apart from the Outdoor LED Display, LED World also can offer you LED Pharmacy Cross Display, LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs;
What we show is some of our current models, welcome to give us your own ideas;

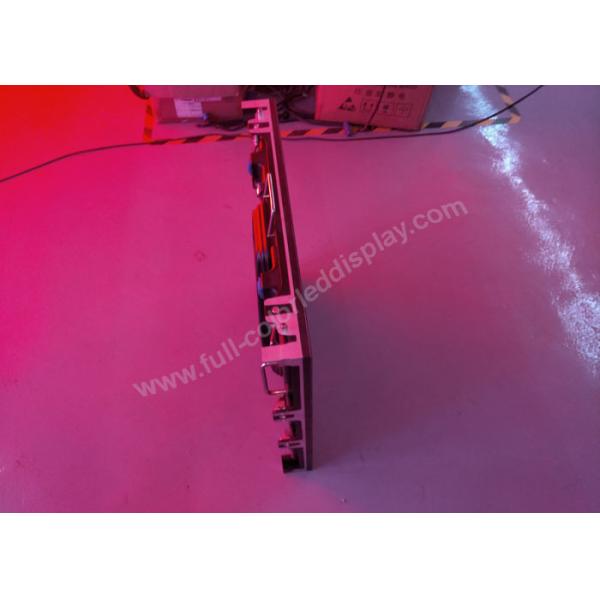

P5 indoor full color LED billboard Product case:

Energy Saving P5 Indoor Full Color LED Billboard With Synchronous 128*128dots
